Wet Wipes Machine Details

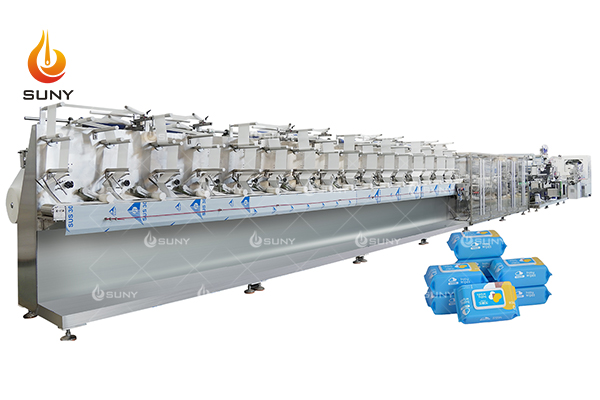

SYT16(20) Removable Wet Wipes Making Machine
Capacity: 300-450 Cuts/Min
Final Products: 65-80 packs/min Baby Wipes
SYT16 (20) wet wipes automatic production line can be used to produce disposable household wet wipes, baby wet wipes, cosmetic wet wipes, personal care wet wipes and flushing wet wipes, etc. Each package contains 20-120 wet wipes.
SEND PHONE: +8619903886476
SEND EMAIL: wipemachinery@gmail.com
Equipment Advantages:
- Suitable for the production of various types of wet wipes: such as household wipes, baby wipes, cosmetic wipes, personal care wipes, flushable toilet wipes. Meet diverse needs.
- Double roll cloth system: SYT20 has 10 axes running and 10 axes standby, SYT16 has 8 axes running and 8 axes standby, ensuring flexible operation.
- High-speed roller cutting: upper and lower roller design, low noise and high cutting accuracy.
- Automatic splicing of raw materials: realize continuous production and reduce downtime.
- Servo motor drive: provides precise control and stable performance.
- Efficient stacking and neat corner insertion: ensure the neat appearance of the finished package.
- Replace packaging film and label without stopping: greatly improve production efficiency.
Product Description
SYT16(20) removable wet wipes making machine is used to produce disposable household cleaning wet wipes or baby wipes. The baby wet wipes making machine can meet the needs of enterprises for high production capacity, and multiple models of products can be selected, with the packing: 20pcs/bag-120pcs/bag.

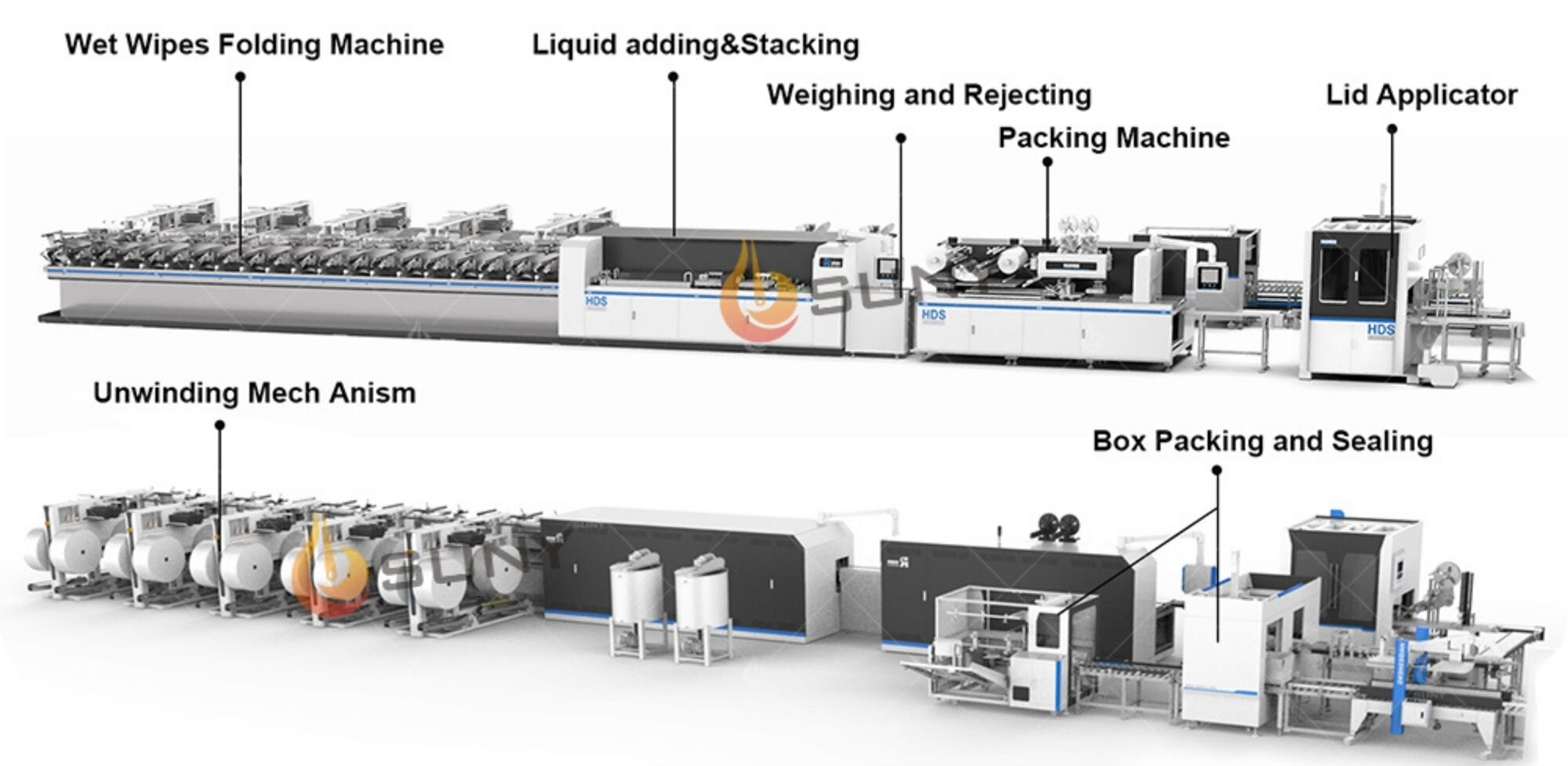

SUNY’s SYT series of wet wipes production lines (including SYT20 and SYT16 models) are high-performance machines designed to meet the production needs of medium to large-sized companies, suitable for manufacturing 20-120 wipes. Its automation functions cover the entire production process of raw material splicing, folding, humidifying, cutting, stacking, double-film standby, packaging and lid-fitting, and it adopts self-developed servo motor drive and advanced automatic control system, realizing a highly efficient and low-noise operation experience.
SYT20 is designed for capacity enhancement, supporting 20 production lanes, while SYT16 is more suitable for the production of large-size packages of 80-piece wet wipes. Both machines focus on detail optimization and can achieve high efficiency and stable production, which is suitable for users who have certain technical requirements for equipment operation.
Wet Wipes Type
SYF6(12) big pouch wet wipes production line is used to produce disposable household cleaning wet wipes or baby wipes, such as baby hand wipes, toilet wipes, etc.
40 Pcs/bag Wet Wipes
50 Pcs/bag Wet Wipes
80 Pcs/bag Baby wet wipes
100 Pcs/bag Wet Wipes
| Model | SYT-16 | SYT-20 |
| Support Language | Chinese, English, French (can be customized) | |
| Speed | 300-450 cuts/min or 5600 sheets/min | 300-450cuts/min or 8000 sheets/min |
| Total Power | AC380V 50/60HZ 40KW | AC380V 50/60HZ 41KW |
| Folding Method | “C”-Type or “N”-Type Folding | |
| Gas Source | 0.6MPA-0.8MPA Air consumption: 0.3m³/min | |
| Weight | 15000Kg | 17000Kg |
| Dimension | 24600*3580*2230mm | 26800*3580*2230mm |
| Material | Spunlace Non-Woven Fabric, Flushable Wet Toilet Pape，etc. | |
| Parent Roll Specification | Maximum diameter: 1100mm, Width: (90-210) mm | |
| Axis Number Setting | 8 axis operation, 8 axis spare | 10 axis operation, 10 axis spare |
| Shaft Diameter | Diameter 76.2 mm | |
| Wet Wipes Unfolded Size | L(100-240)*W(150-210)mm | |
| Wet Wipes Folded Size | L(100-2400)*W(80-150)mm | |
| Packing Material | Aluminized film, aluminum foil film, PE/PP, PO/PPE | |
| Material Thickness | 0.07-0.09 mm | |
| Axis Number Setting | Single axis operation | |
| Shaft Diameter | Diameter 70-75 mm | |
| Packaging Material Specification | Diameter 350mm, maxwidth: 350 mm | |
| Package Dimensions | L(150-360)*W(80-110)*H(20-100)mm | |
| Applicable Stickers | Transparent stickers and opaque stickers | |
| Axis Number Setting | Two-axis operation | |
| Sticker Size | Standard 35-50mm(Can be customized) | |
| Hole Size | Standard 20-40mm(Can be customized) | |
| Sticker Thickness | 0.6mm-0.08mm | |
